| 产地 | 江苏江阴 |
|---|---|
| 电流 | 0.08ma |
| 电压 | 5v |
| 规格 | Φ24.8 x H12.5 |
| 声道数 | 2.1声道 |
| 制造商 | 江阴市福鼎通讯器材有限公司 |
| 种类 | 蜂鸣器(片) |
| 品牌 | FD/福鼎 |
| 型号 | FDC-250125F |
| 其它名称 | 插针蜂鸣器 |
本公司供应FD/福鼎FDC-250125FFD/福鼎 FDC-250125F 蜂鸣器(片) 江苏江阴 0.08ma 5v，质量保证，欢迎咨询洽谈。

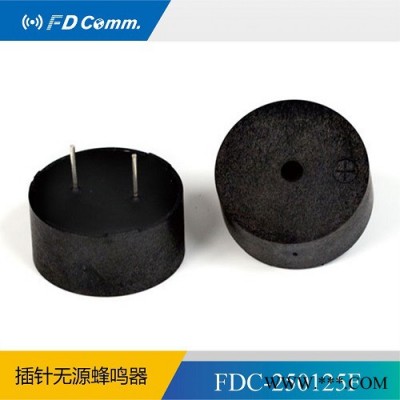

产品名称：FDC-250125F
类型： 电磁式蜂鸣器
驱动方式： 无源蜂鸣器
工艺： 插针蜂鸣器
尺寸范围：20-30mm
描述
A. SCOPE
This specification applies magnetic buzzer, FDC-250125F-05008R33
B. SPECIFICATION
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 800 | Vo-p=1/2duty , square wave |
| 2 | Operating Voltage | Vo-p | 3 ~ 6 | |
| 3 | Rated Voltage | Vo-p | 5 | |
| 4 | Current Consumption | mA | MAX.80 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 85 | at 10cm at Rated Voltage |
| 6 | Coil Resistance | Ω | 33±5 | |
| 7 | Operating Temperature | ℃ | -40 ~ +85 | |
| 8 | Storage Temperature | ℃ | -40 ~ +85 | |
| 9 | Dimension | mm | Φ24.8 x H12.5 | See appearance drawing |
| 10 | Weight (MAX) | gram | 8.2 | |
| 11 | Housing Material | | PPO( Black ) | |
| 12 | Leading Pin | | Tin Plated Brass(Sn) | See appearance drawing |
| 13 | Environmental | | RoHS | |
