| 品牌 | JBL |
| 型号 | RM612 |
| 公司性质 | 私营企业 |
| 所在区域 | 北京朝阳区 |
| 所在行业 | 专业音响 |

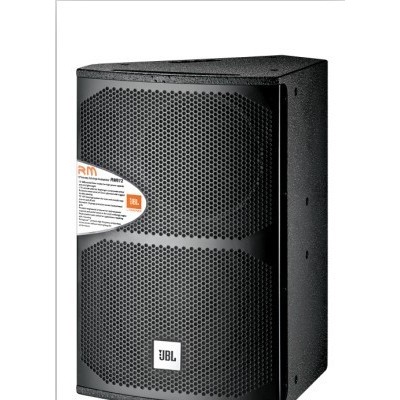

JBL全频音箱 RM612
DIMENSIONS(HxWxD) 605mmX383mmX82.5mm(23.8"X15.1"X15.1")
NET WEIGHT 19.4kg(42.8lbs)
COMPonWNTS 1X12"(305mm)LF driver,1X14"(35mm)HF driver on a Converging Eliptical Waveguide
FREQUENCY RESPonSE 52Hz-20kHz 4dB
NOMINAL DISPERSION Passive:400watts continuous,800watts program
SENSITIVITY 97.6dB,1watt@1 metre
MAXIMUM SPL 123.7dB continuous
NOMINAL IMPEDANCE Passive:8ohms
CROSSOVER Internal passive crossover at 2k4Hz;18dB/octave Butterworth
ConSTRUCTION 15mm(3/5")brich plywood,finished in black semi-matt textured paint
GRILLE Powder coated perf825ated steel with acoustically transparent reticulated foa
ConNECTORS (2)Speakon NL4MP,wired pin1+:postive,pin1-:negative,pins2+and2-n/c
RIGGING M8 rigging points for wall bracket
OPTIONS Black textured paint
