首页 > 供应产品 > JBL 扬声器 JBL AM4315/95 JBLAM431595 jbl-am4315-95 JBL AM43

JBL 扬声器 JBL AM4315/95 JBLAM431595 jbl-am4315-95 JBL AM43

单价	面议对比
询价	暂无
浏览	1002
发货	北京
品牌	森海塞尔
过期	长期有效
更新	2023-05-09 11:15

详细信息

品牌	JBL
型号	JBL AM4315/95
公司性质	私营企业
所在区域	北京朝阳区
所在行业	专业音响

　　JBL扬声器JBL AM4315/95 JBLAM431595 jbl-am4315-95

JBL AM4315/95

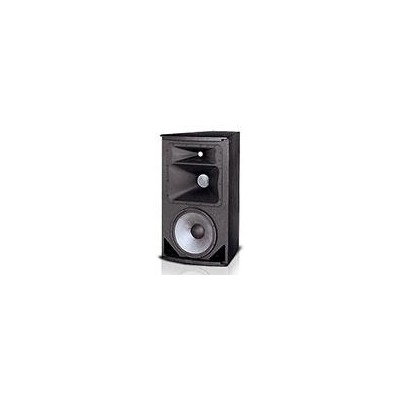

　　AM4315/95 is a medium power 3-way full-range loudspeaker system comprised of one 380 mm (15 in) low frequency driver, one 165 mm (6.5 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/38 mm (1.5 in) voice-coil HF compression driver.

Features :
?	90° x 50° Coverage, rotatable for use in either vertical or horizontal orientation.
?	CMCD? Cone Midrange Compression Driver? provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
?	PT? Progressive Transition? Waveguide for excellent pattern control with low distortion.
?	Bi-Amp/Passive Switchable.
?	90° x 50° Coverage.
?	Optional planar array frame kit PAF-2K for 3-wide array with ASB6128V subwoofer center. (See AE Series Array Guide).
?	For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Specifications :
Frequency Range	40 Hz - 23 kHz (-10 dB)
Frequency Response	50 Hz - 20 kHz ( ± 3 dB)
Coverage Pattern	90°x 50°, rotatable waveguide
Directivity Factor (Q)	10
Directivity Index (DI)	10 dB
Crossover Modes	Bi-amp / Passive switchable
Passive Crossover Slopes	LF/MF & MF/HF in Passive mode: 　　4th order (24 dB/oct) linkwitz-Riley 　　HP & LP, 500 Hz and 2.8 kHz
Transducer Power Rating (AES)	LF: 500 W (2000 W peak), 2 hrs 　　350 W (1400 W peak), 100 hrs 　　MF/HF: 125 W (500 W peak), 2 hrs 　　100 W (400 W peak), 2hrs
Long-TermSystem Power Rating (IEC)	Passive mode: 350 W 　　(1400 W peak), 100 hrs
Maximum SPL	Bi-amp mode: 　　LF: 124 dB-SPL cont avg 　　(130 dB peak) 　　MF/HF: 127 dB-SPL cont avg 　　(133 dB peak) 　　Passive mode: 　　124 dB-SPL cont avg 　　(130 dB peak)
System Sensitivity	Passive mode: 97 dB SPL (1W @ 1m)
