- 品牌/型号:/RF26C024AW
- 频率范围:0.4(KHz)
- 性噪比:min93(db)
- 类型:机械式蜂鸣器
- 额定电压:24(V)V
- 额定电流:25(A)A

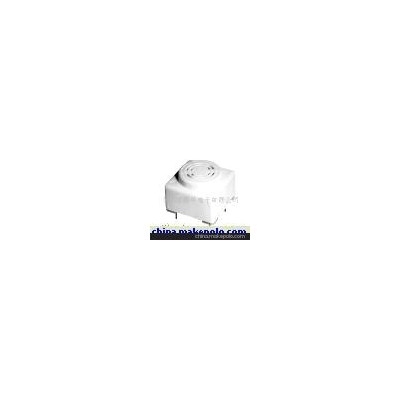

-----PHOTO-----------OUTLINE DRAWING-(UNIT:mm)----------RF26C024AW--- ----- APPLICATIONS-----------ITEM------RF26C024AWRF26C024BW *Office equipment * Instrumentation,etc. ---适用范围--- * 办公设备 * 仪器设备 RATED VOLTAGE-额定电压24.0 VDC OPERATING VOLTAGE-电压范围2.0V ~ 24.0VDC RATED CURRENT (max)消耗电流*max.35 mA SOUND PRESSURE LEVEL(min)-输出音压*min.93dB FUNDAMENTAL FREQUENCY-频率*400 ± 100 Hz OPERATING TEMPERATURE RAGE-操作温度-10℃to +60℃ STORAGE TEMPERATURE RAGE-贮藏温度-10℃to +70℃ *Value applying at rated voltage
