| 重复性 | 10000 |
|---|---|
| 温度性能 | 105 |
| 寿命 | 10000 |
| 适用印制板厚度 | 待定 |
| 适用电线 | 26 |
| 耐压 | 100 |
| 插拔力 | 10000 |
| 接触电阻 | 1 |
| 间距 | 2.5 |
| 回波损耗 | 2000 |
| 环境温度 | 110°C |
| 互换性 | 10 |
| 插入损耗 | 12 |
| 绝缘电阻 | 1Ω |
| 产地 | 马来西亚 |
| 读卡类型 | CF |
| 工作频率 | 低频 |
| 接口类型 | AC/DC |
| 特性 | 防潮 |
| 线长 | 0（mm） |
| 芯数 | N |
| 形状 | 条形 |
| 应用范围 | 电源 |
| 针数 | N |
| 制作工艺 | 冷压 |
| 种类 | 端子(TERMINAL) |
| 绝缘体材质 | 尼龙 |
| 接触件材质 | CU |
| 支持卡数 | 多合一 |
| 品牌 | JST/压着端子 |

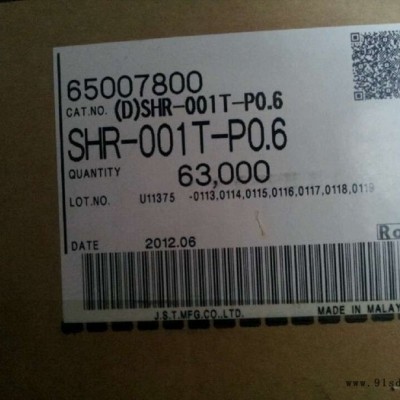

| 型号 | SHR-001T-P0.6 |
HM connector Matable with HR receptacles*Both crimp style and insulation displacement HR connector receptacles can be accommodated by the HM connector.*Housing lances*Mountable on panels of various thickness without using tools.*The contacts are individually and totally surrounded by housing walls.Product ProfileSeries HM connectorCategory Wire to Wire ConnectorsType Maitable with crimp style/IDC style HR receptacle SpecificationPitch 2.5 mmCurrent rating Insulation displacement HR/MAX 2A,Crimp style HR/MAX 3AVoltage rating MAX 250VCompliant with RoHS.(LF)(SN) as identification part number shall be displayed on a label.When ordering RoHS compliant products, please inquire to the nearestJST Sales Office, or order them with the described part number adding(LF)(SN) as the identification marking after it.
