| 应用范围及用途 | 基板,电路板 |
| 形状尺寸 | 弯针 |
| 材质 | 铜 |
| 额定电压 | 220V |
| 封装 | BGA |
| 工作频率 | 高频 |
| 芯数 | 3 |
| 形状 | 矩形 |
| 绝缘体材质 | 尼龙 |
| 接触件材质 | 铜 |
| 品牌 | 捷信通 |
| 型号 | S3B-XH-A |
| 加工定制 | 否 |

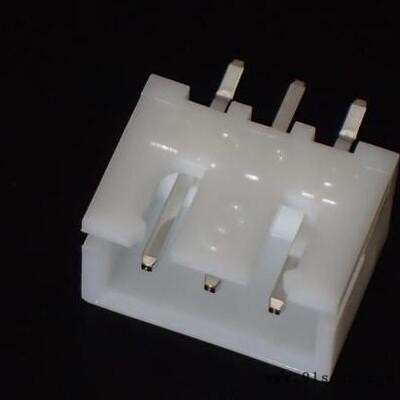

产品详细信息 XH 针座
这些 XH 系列盒型有罩管座提供顶部接入和侧面装入配置。 这些 XH 系列盒型有罩管座的晶片材料为 PA66，等级为 UL 94V-0，颜色为本色（白色）。 支柱采用镀锡黄铜，用于这些 XH 系列盒型有罩管座。
有关匹配的 XH 系列插头外壳。
| 产品规格 |
| 材料，表面处理 |
| 支柱：黄铜，铜二道底漆，镀锡合金 |
| 基座：尼龙 66 UL94V-0，自然（白色） |
2.5mm 线到板连接器 (JST) XH 系列
本公司供应优势JST原厂连接器，品牌捷信通，型号S3B-XH-A。参数为：应用范围及用途 基板,电路板，形状尺寸 弯针，接触件材质 铜，绝缘体材质 尼龙，芯数 3，线长 0。质量保证，欢迎咨询洽谈。
| XH connector |
 | | This connector was developed based on the high reliability and versatility of our NH series connectors. The connector is very small with mounting height of 9.8mm.
| | Product Profile | | Series | XH connector | | Category | Wire to Board Crimp style Connectors | | Type | Disconnectable type
Crimp style, Shrouded header type |
| | Specification | | Pitch | 2.5 mm | | Current rating | 3A (AWG#22) | | Voltage rating | 250V | PC board
mounting direction | Top entry, Side entry |
Compliant with RoHS.
(LF)(SN) as identification part number shall be displayed on a label.
When ordering RoHS compliant products, please inquire to the nearest
JST Sales Office, or order them with the described part number adding
(LF)(SN) as the identification marking after it.
| |
