| 型号 | PMT.110 |
|---|---|
| 建议零售价 | ？？0.00 |
| 类别 | 凸轮式旋钮式 分度销 |
| 标准类型 | 德标 |
| 标准编号 | GB879-86 |
| 公称直径 | 8-10（mm） |
| 表面处理 | 氧化发黑 |
| 材料等级 | 碳钢和不锈钢 |
| 应用范围 | 机械工业用紧固件 |
| 加工定制 | 否 |
| 样品或现货 | 现货 |
| 公称长度 | 8 10 12 |
| 品牌 | ELESA+GANTER |
hreaded body
Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer. Resistant to solvents, oils, greases and other chemical agents.
Plunger
Black-oxide hardened steel or AISI 303 stainless steel.
Suggested tolerance for matching hole = H7.
Knob
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish. Resistant to solvents, oils, greases and other chemical agents.
Spring
AISI 302 stainless steel.
Locking nut
Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer. Resistant to solvents, oils, greases and other chemical agents.
Standard executions
- PMT.110-A: black-oxide steel plunger, without locking nut.
- PMT.110-AK: black-oxide steel plunger, with locking nut (supplied not assembled).
- PMT.110-SST-A: AISI 303 stainless steel plunger, without locking nut, not magnetic.
- PMT.110-SST-AK: AISI 303 stainless steel plunger, with locking nut (supplied not assembled), not magnetic
Features and applications
- Lightness and high mechanical resistance of the product.
- Anticorrosive material: suitable even in the presence of liquid or humidity (PMT.110-SST).
- The SUPER-technopolymer threaded body of the plunger offers a low friction factor to the plunger stroke; no lubricating maintenance is required.
- Resistant to several washing cycles with solvents and detergents, for this reason they are suitable for applications as in the pharmaceutical or food industry.
Assembly instructions

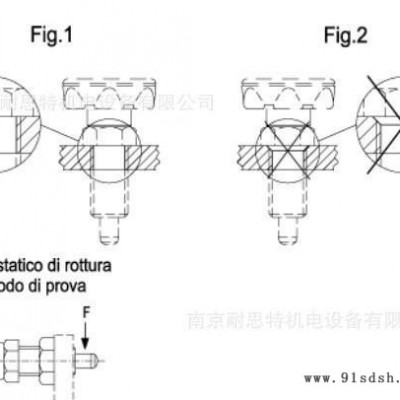

Make sure that no machining residues are left on the threaded hole for the screwing of PMT.110 indexing plunger (see fig. 1).
Do not make any chamfering in the hole (see fig. 2).
本体材质：聚酰胺基高科技聚合体PA材质
抗溶性 、油 油脂和其他化学试剂。
柱塞
黑色氧化硬化钢或AISI303不锈钢。
建议匹配的孔= H7公差。
把手
玻璃纤维聚酰胺（PA ）高科技聚合体，灰黑色，粉色。抗溶剂，油，油脂和其他化学试剂。
螺母： AISI 302不锈钢。
标准选型：
- PMT.110 -A：黑色氧化钢柱塞，没有锁紧螺母。
- PMT.110 -AK黑色氧化钢柱塞，具有自锁螺母（提供组装） 。
- PMT.110 -SST -A ： AISI 303不锈钢柱塞，没有锁紧螺母，没有磁性。
- PMT.110 -SST- AK： AISI 303不锈钢柱塞，具有自锁螺母（提供组装）
