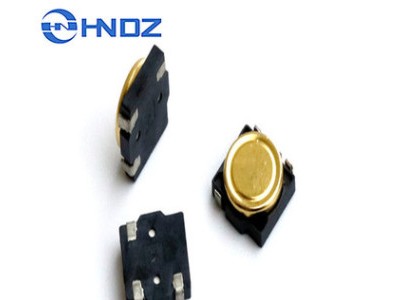

SMD贴片蜂鸣器MLT-5018 尺寸551.8mm 阻抗12欧HNDZ华能电子
微信扫码

~~原价：￥2.40~~

￥2.40

发货地	江苏
评价	已有 0 条评价对比
人气	已有 742 人关注
数量	+- 库存999件

联系方式

加关注0

江苏华能电子有限公司

企业会员第9年

资料通过认证

保证金未缴纳

江苏
上次登录 2016-06-30 •
吴付军 (先生)

江苏华能电子有限公司

进入主页更多商品

企业主推商品

更多>

商品详情
评价详情(0)

微信扫码

A. SCOPE
This specification applies magnetic buzzer, MLT-5018

B. SPECIFICATION

No.	Item	Unit	Specification	Condition
1	Oscillation Frequency	Hz	4000	Vo-p=1/2duty , square wave
2	Operating Voltage	Vo-p	2 ~ 4
3	Rated Voltage	Vo-p	3
4	Current Consumption	mA	MAX. 110	at Rated Voltage
5	Sound Pressure Level	dB	MIN. 75	at 10cm at Rated Voltage
6	Coil Resistance	Ω	12±3
7	Operating Temperature	℃	-20 ~ +70
8	Storage Temperature	℃	-30 ~ +80
9	Dimension	mm	5.5 x 5.5 x H1.7	See appearance drawing
10	Weight (MAX)	gram	0.6
11	Housing Material		LCP( Black ) Top(Brass)
12	Leading Pin		Tin Plated Brass(Sn)	See appearance drawing
13	Environmental Protection Regulation		RoHS

C. APPEARANCE DRAWING
undefined

Tol : ± 0.3 Unit: mm

D.TESTING METHOD
Standard Measurement conditions
Temperature:25±2℃ Humidity:45-65%

Acoustic Characteristics:
The oscillation frequency, current consumption and sound pressure are measured by the measuring instruments shown below

undefined

In the measuring test, buzzer is placed as follows:

E. Typical Frequency Response Curve

undefined

F. Recommend Driving Circuit
undefined

The base current Ib should high enough so that it saturates the collector current of the transistor with the CB load.

G. Soldering Condition
(1)Recommendable reflow soldering condition is as follows
(Reflow soldering is twice)
Note:It is requested that reflow soldering should be executed after heat of product goes down to normal.

undefined

Heat resistant line
(Used when heat resistant reliability test is performed)
(2)Manual soldering
Manual soldering temperature 350 ℃ within 5 sec.

H. RELIABILITY TEST

NO.	ITEM	TEST ConDITION AND REQUIREMENT
1	High Temperature Test (Storage)	After being placed in a chamber with 802℃ for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB.
2	Low Temperature Test (Storage)	After being Placed in a chamber with -302℃ for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB.
3	Humidity Test	After being Placed in a chamber with 90-95% R.H. at 402℃ for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB.
4	Temperature Cycle Test	The part shall be subjected to 5 cycles. One cycle shall be consist of: Allowable variation of SPL after test: 10dB.
5	Drop Test	Drop on a hard wood board of 4cm thick, any directions ,6 times, at the height of 75cm . Allowable variation of SPL after test: 10dB.
6	Vibration Test	After being applied vibration of amplitude of 1.5mm with 10 to 55 Hz band of vibration frequency to each of 3 perpendicular directions for 2 hours . Allowable variation of SPL after test: 10dB.
7	Solderability Test	Lead terminals are immersed in rosin for 5 seconds and then immersed in solder bath of +3005℃ for 31 seconds . 90% min. lead terminals shall be wet with solder (Except the edge of terminals).
8	Terminal Strength Pulling Test	The force of 9.8N(1.0kg) is applied to each terminal in axial direction for 10 seconds. No visible damage and cutting off.

TEST CONDITION.
Standard Test Condition : a) Temperature : +5 ~ +35℃ b) Humidity : 45-85% c) Pressure : 860-1060mbar
Judgment Test Condition : a) Temperature : +25 ± 2℃ b) Humidity : 60-70% c) Pressure : 860-1060mbar

I. PACKING STANDARD
