迷你USB蓝牙HIFI功放 小型音响功放机 发烧数字音频功放机
产品介绍
产品信息
名称：60W HIFI 音频放大器
品牌：佳景利达
货号：JJLD-89
颜色：黑色
产品简介:
该产品将光学、同轴和蓝牙数字音频信号转换为立体声模拟音频信号，并支持192K/24位HIFI立体声放大。帮助用户解决不同音频接口与模拟放大器的连接问题，使音乐信号表达更自然、更逼真、更接近源音质，为广大音乐爱好者提供完美的音乐体验。
产品接口图
产品接口图
产品详情
产品介绍
Features:

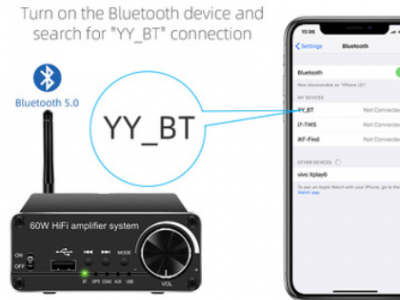

l Built-in Bluetooth receiver module and supports mobile device Bluetooth connection
l Support digital audio conversion to analog audio signals
l Built-in high-performance DAC chip, support 192K/24bit sampling rate
l Adopt the latest Bluetooth version 5.0 lossless transmission technology
l Adopt Bluetooth dedicated antenna for stable signal transmission
l Memory store when power off, Support last time working state memory when power off
l Adopt personalized status indicator
l Support optical, coaxial,AUX, USB audio inputmodel switching
l Support output volume adjustment
Specifications:
SPDIF&CoaxialAudio Formats.....................PCM/LPCM
U-disk playbackformat..............WAVE,MP3,WMA,AAC,Flac,APE
Audio Sample Rate...........................................32~192K
Bluetooth Audio Sample Rate.............................32~48K
Bluetooth Version...........................................5.0 Version
BluetoothName.............................192Khz HiFi Amplifier
Output power................................................30W +30W
Maximum working current..........................4000mA(19V)
Working environment temperature.................-10~+55°C
Storage environment temperature..................-26~+60°C
Working environment humidity......................10~90%RH
(no condensation)
Storage environment humidity........................5~95% RH
(no condensation)
Size........................................................129x103x44mm
Gross weight...........................................................950G
Shell material...........................................Aluminum alloy
Package：
1PCS......HIFI Amplifier
1PCS......DC19V Power Adapter
1PCS......User Manual

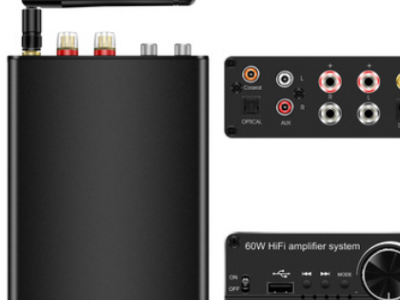

Diagram of Interfaces：
1 Coaxial input interface
2 R/L input interface
3 Stereo output interface
4 Bluetooth antenna
5 Optical input interface
6 DC19V Power Input
7 Power ON/OFF
8 USB Audio Input interface（This interface only supports U disk playback, not computer）
9 Input signal indicator
10 Volume control
11 Last song
12 Next song
13 Press button to switch input channels
产品展示图
