| 加工定制 | 是 |
|---|---|
| 种类 | 蜂鸣器(片) |
| 驱动方式 | 电磁式 |
| 是否有源 | 有源 |
| 材质 | ABS |
| 规格尺寸 | 12*8.5（mm） |
| 声道数 | 单声道 |
| 品牌 | 美国ECCO |
| 型号 | 820 |
**********

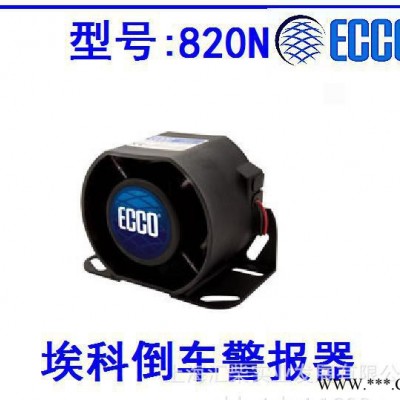

Steel housing and rugged construction for demanding applications. Reverse mounted speaker enhances sound and protects the alarm from dust and moisture ingress. Sealed in epoxy for protection against dust, moisture and vibration. Switchable dB rating is user selectable at installation. - See more at: //www.eccolink.com/products/productdetails.aspx?id=12522#sthash.LQ5sJHcZ.dpuf
| Title | Value | |
| Voltage | 12-36 VDC | |
| Amps | 0.4 | |
| Volume | 87 or 107 | |
| Type | Speaker | - |
| Warranty | ECCOLIFE | |
| Approval | SAE J994 Type D or B (AMECA), UL, CE, e | |
| Temperature Range | -40F to +185F | - |
- See more at: //www.eccolink.com/products/productdetails.aspx?id=12522&catid=0&tabid=2&menuId=#sthash.BQzjI7Mi.dpuf
| File | Description | |
| 800_ECCO_8.5X11.pdf | Data Sheet | Download |
| 800_Series_1500p.jpg | High Resolution Image | Download |

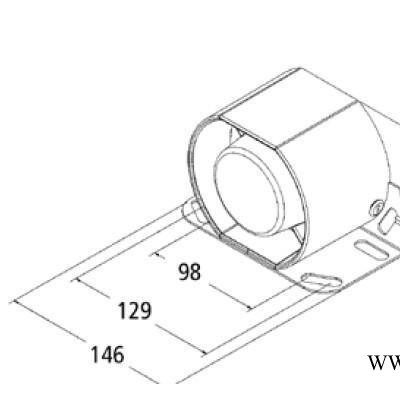

| 94832.pdf | Engineering Drawing | Download |
| 94243.pdf | Installation Instructions | Download |
