| 材质 | 铁盒 |
|---|---|
| 产地 | 中国 |
| 类型 | 数字 |
| 颜色 | 黑色 |
| 品牌 | OEM |
| 型号 | DVB-T2 |
| 加工定制 | 是 |

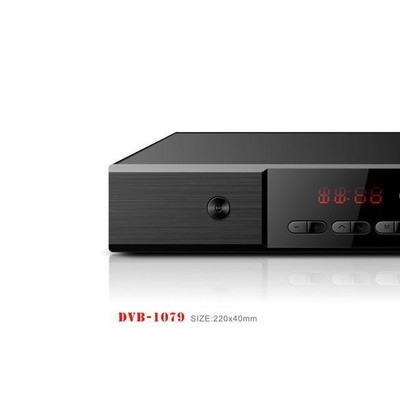

Main features
HD DVB-T2 Receiver Standard
Mstar 7T01chipset
MPEG-4/H.264
One USB 2.0 & HDMI
PVR, View JPEG
1080p support
Time shift, teletext, parental lock
Software upgrade through USB
Support PAL/NTSC Auto conversion
Product specification
Full Supports HD DVB T2/T,MPEG2, MPEG4,HD H.264,1080i,1080p
HDMI for multimedia play, standard and high definition output for DVB-T2
Auto and manually scan all available TV and radio channels
Aspect ratio 16:9 and 4:3
HDMI, YPbPr, RCA (AV), Coaxial ,USB output
Multi-language subtitle output supported
Powerful and highly effective 7-day EPG function
Supports teletext
Parental lock
Timeshift function
USB2.0 PVR & playback
Stores up to 1,000 programs and keeps in memory while power-off
Photo: JPEG, BMP, PNG
Audio: WMA, MP3, AAC (.wma, .mp3, m4a)
Video: MPEG1, MPEG2, MPEG4, H264
Motion JPEG (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,.mjpeg,.ts,.trp)
NTFS, FAT32, FAT16
JPEG/Audio combo playback
Automatic PAL/NTSC conversion
System Resources
- CPU/MPU/Mainchip: MSD7802 (MIPS 34K@600MHz)
- Flash memory: 32Mbit
- DDR-2 SDRAM: 512Mbit
Demultiplexer
- Standard: ISO/IEC 13818-1
- Input Max. Bit Stream Rate: 120Mbps
Tuner
- Maxlinear high sensitive and reliable silicon tuner: MXL201
- Input Frequency Range : VHF: 174~230MHz, UHF: 470~862MHz
- IF Bandwidth : 6,7 or 8MHz
- Input Signal Level : -85dBm ~ -20dBm
- RF Input Connector: D-type connector(RF IN)
- Input impedance : 75 ohm
De-modulator
- Modulation mode : OFDM (Orthogonal Frequency Division Multiplexing)
- Demodulation :256QAM, 64QAM, 16QAM and QPSK
- Guard interval : 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
- FEC Code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Connector
- RF Input: 1 x IEC169-2, Female
- RF Output: 1 x IEC169-2, Male
- Digital Output: 1 x HDMI
- Analog Output: 1 x RCA
- Digital Autio Output: 1 x Coaxial
- USB: 1 x USB2.0 for upgrading, multi-media play, PVR and timeshifting
Environmental Conditions
- Input Voltage: AC200 ~ 240V
- Power Consumption: Max. 5W
- Stand-by Power Consumption: <0.5W
- Operating temperature: 0 ~ 45°C
