| 加工定制 | 否 |
|---|---|
| 样品或现货 | 现货 |
| 类别 | 旋钮柱塞 分度销 |
| 标准类型 | 德标 |
| 标准编号 | GN 717-3-M6-C-NI |
| 公称直径 | 见参数（mm） |
| 表面处理 | 镀锌 |
| 材料等级 | 见参数 |
| 应用范围 | **紧固件 |
| 公称长度 | 见参数 |
| 品牌 | GANTER |
| 型号 | GN 717-C-NI |
| 加工定制:否 | 样品或现货:现货 |
| 类别:旋钮柱塞 分度销 | 标准类型:德标 |
| 标准编号:GN 717-3-M6-C-NI | 公称直径:见参数（mm） |
| 表面处理:镀锌 | 材料等级:见参数 |
| 应用范围:军工专用紧固件 | 公称长度:见参数 |

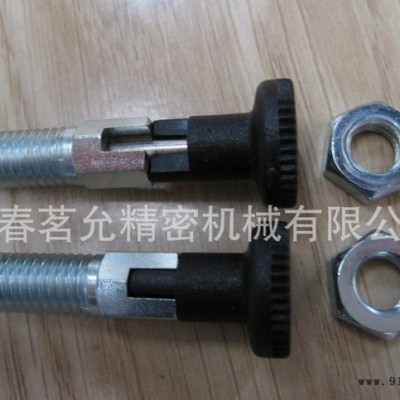

长期供应山东 有卡锁旋钮柱塞分度销GN 717-C-NI 可大量供应批发
Printable version
Add to my favourites
Technical information
Threaded body
AISI 303 stainless steel.
Plunger
AISI 303 stainless steel.
Suggested matching hole with tolerance +0.03/+0.08
Locking nut
AISI 304 stainless steel.
"Push/Pull" knurled knob
High resilience polyamide based (PA) technopolymer, black colour, matte finish. Resistant to oils, greases and other chemical agents.
Standard versions available
- Type C: with knob, without locking nut.
- Type CK: with knob and locking nut, ISO 4035.
Features and applications
Indexing plungers with rest position GN 717-C-NI are used where positioning operations are required and in those applications where the plunger needs to be locked in the retracted position.
GN 717-C-NI are a range of low cost indexing plungers which score highly on small dimensions. Their use should, however be limited to such applications where high precision indexing is not required.
Due to comparably small dimensions indexing plungers GN 717-C-NI, it is adviseable to follow the data listed in above table regarding maximum tightening torque during assembly.
AISI 303 stainless steel, thanks to its high resistance to corrosion, allows the application of these indexing plungers on machines and equipment in those sectors where laws or particular hygienic, climatic and environmental factors make it mandatory to use corrosion resistant materials.
Standard Elements | Main dimensions | max. tightening torque in Nm | Spring pressure in N ≈ | Weight | ||||||||||
Description | d1 h11 | d2 | d4 | e | l1 | l2 min. | l3 | l4 | l5 min. | A/F | Preload | Max. load | g | |
GN 717-3-M6-C-NI | 3 | M6 | 12 | 6.9 | 32.5 | 3.5 | 12 | 7 | 10 | 6 | 2 | 3 | 12 | 4 |
GN 717-4-M6-C-NI | 4 | M6 | 12 | 6.9 | 33 | 4 | 12 | 7 | 10 | 6 | 2 | 3 | 12 | 4 |
GN 717-5-M8-C-NI | 5 | M8 | 16 | 6.9 | 43.5 | 5 | 16 | 9.5 | 13.5 | 8 | 7 | 5 | 24 | 10 |
GN 717-6-M10-C-NI | 6 | M10 | 18 | 6.9 | 52 | 6 | 20 | 10.5 | 17 | 10 | 15 | 5 | 21 | 19 |
GN 717-8-M12-C-NI | 8 | M12 | 21 | 6.9 | 63.5 | 8 | 24 | 13.5 | 20.5 | 12 | 20 | 6 | 22 | 35 |
GN 717-3-M6-CK-NI | 3 | M6 | 12 | 6.9 | 32.5 | 3.5 | 12 | 7 | 10 | 6 | 2 | 3 | 12 | 4 |
GN 717-4-M6-CK-NI | 4 | M6 | 12 | 6.9 | 33 | 4 | 12 | 7 | 10 | 6 | 2 | 3 | 12 | 5 |
GN 717-5-M8-CK-NI | 5 | M8 | 16 | 6.9 | 43.5 | 5 | 16 | 9.5 | 13.5 | 8 | 7 | 5 | 24 | 12 |
GN 717-6-M10-CK-NI | 6 | M10 | 18 | 6.9 | 52 | 6 | 20 | 10.5 | 17 | 10 | 15 | 5 | 21 | 24 |
GN 717-8-M12-CK-NI | 8 | M12 | 21 | 6.9 | 63.5 | 8 | 24 | 13.5 | 20.5 | 12 | 20 | 6 | 22 | 46 |
GN 717-3-M6x0.75-C-NI | 3 | M6x0.75 | 12 | 6.9 | 32.5 | 3.5 | 12 | 7 | 10 | 6 | 3 | 3 | 12 | 4 |
GN 717-4-M8x1-C-NI | 4 | M8x1 | 16 | 9.2 | 43 | 4.5 | 16 | 9.5 | 13.5 | 8 | 8 | 5 | 24 | 10 |
GN 717-5-M10x1-C-NI | 5 | M10x1 | 18 | 11.5 | 46 | 5 | 16 | 10 | 16 | 10 | 22 | 5 | 24 | 19 |
GN 717-6-M12x1.5-C-NI | 6 | M12x1.5 | 21 | 13.8 | 55 | 6 | 20 | 11 | 20 | 12 | 38 | 5 | 21 | 35 |
GN 717-8-M16x1.5-C-NI | 8 | M16x1.5 | 25 | 19.6 | 68 | 8 | 24 | 13.5 | 24 | 17 | 80 | 6 | 22 | 60 |
GN 717-3-M6x0.75-CK-NI | 3 | M6x0.75 | 12 | 6.9 | 32.5 | 3.5 | 12 | 7 | 10 | 6 | 3 | 3 | 12 | 5 |
GN 717-4-M8x1-CK-NI | 4 | M8x1 | 16 | 9.2 | 43 | 4.5 | 12 | 9.5 | 13.5 | 8 | 8 | 3 | 12 | 12 |
GN 717-5-M10x1-CK-NI | 5 | M10x1 | 18 | 11.5 | 46 | 5 | 16 | 10 | 16 | 10 | 22 | 5 | 24 | 24 |
GN 717-6-M12x1.5-CK-NI | 6 | M12x1.5 | 21 | 13.8 | 55 | 6 | 20 | 11 | 20 | 12 | 38 | 5 | 21 | 27 |
GN 717-8-M16x1.5-CK-NI | 8 | M16x1.5 | 25 | 19.6 | 68 | 8 | 24 | 13.5 | 24 | 17 | 80 | 6 | 22 | 80 |
