| 材质 | 塑料 |
|---|---|
| 厚度 | 1mm |
| 品牌 | 零件买卖网 |
| 型号 | 9*4.2*1 |
| 加工定制 | 否 |

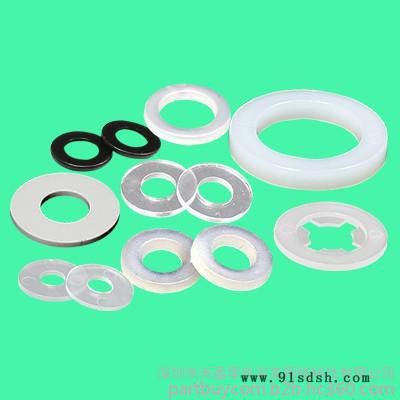

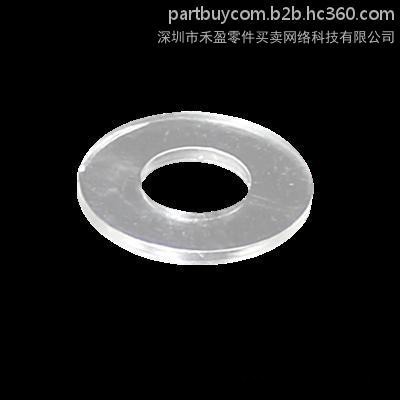

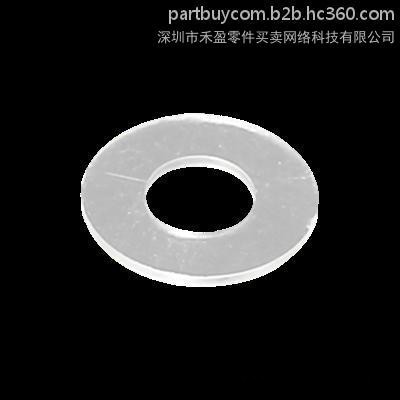

1.产品简图(Product sketch) 产品描述(description)
 | 型号(type):垫片系列
材料(material):PC/PP/PA66/POM
颜色:黑色/本色
Color:black/natural
单位(unit)：MM
防火等级(Fireproofing level):(UL)94V2
|
2.产品参数(Product Parameter)
| 产品编号 | 型号 | ∅D | ∅d | T |
| 106051050012 | 垫片6*3*1.2 | 6 | 3 | 1.2 |
| 106051050022 | 垫片8*3*1 | 8 | 3 | 1 |
| 106051050032 | 垫片8*5*1 | 8 | 5 | 1 |
| 106051050042 | 垫片9*4*1 | 9 | 4 | 1 |
| 106051050052 | 垫片10*4*1 | 10 | 4 | 1 |
| 106051050062 | 垫片10*5*1 | 10 | 5 | 1 |
| 106051050072 | 垫片10*5*1 | 10 | 5 | 1 |
| 106051050082 | 垫片17*13*1 | 17 | 13 | 1 |
| 106051050092 | 垫片20*17*1 | 20 | 17 | 1 |
| 106051050102 | 垫片12.5*6.3*2.5 | 12.5 | 6.3 | 2.5 |
| 106051050112 | 垫片12.5*6.3*7.5 | 12.5 | 6.3 | 7.5 |
| 106051050122 | 垫片8*4*2 | 8 | 4 | 2 |
| 106050450122 | 垫片8*4*2 | 8 | 4 | 2 |
| 106051050132 | 垫片18*10*4 | 18 | 10 | 4 |
| 106051050142 | 垫片15*5*1 | 15 | 5 | 1 |
| 106051050152 | 垫片15*10*2 | 15 | 10 | 2 |
| 106051050162 | 垫片10*10*2 | 10 | 10 | 2 |
| 106051050172 | 垫片17*10*2 | 17 | 10 | 2 |
| 106051050182 | 垫片22*10*2 | 22 | 10 | 2 |
| 106051050192 | 垫片20*13*2 | 20 | 13 | 2 |
| 106051050202 | 垫片25*13*2 | 25 | 13 | 2 |
| 106051050212 | 垫片25*16*2 | 25 | 16 | 2 |
| 106051050222 | 垫片28*10*2 | 28 | 10 | 2 |
| 106051050232 | 垫片30*10*1.5 | 30 | 10 | 1.5 |
| 106051050242 | 垫片30*13*1.5 | 30 | 13 | 1.5 |
| 106051050252 | 垫片35*10*1.5 | 35 | 10 | 1.5 |
| 106051050262 | 垫片35*13*1.5 | 35 | 13 | 1.5 |
| 106051050272 | 垫片22*12*1.5 | 22 | 12 | 1.5 |
| 106051050282 | 垫片24*14*1.5 | 24 | 14 | 1.5 |
| 106051050292 | 垫片25*10*2 | 25 | 10 | 2 |
| 106051050302 | 垫片22*10*1 | 22 | 10 | 1 |
| 106051050312 | 垫片23.8*12.7*1.6 | 23.8 | 12.7 | 1.6 |
| 106051050322 | 垫片20*10*2 | 20 | 10 | 2 |
| 106051050332 | 垫片18*10*2 | 18 | 10 | 2 |
| 106051050342 | 垫片18*10*1.5 | 18 | 10 | 1.5 |
| 106051050352 | 垫片17*10*2 | 17 | 10 | 2 |
| 106051050362 | 垫片15*10*1 | 15 | 10 | 1 |
| 106051050372 | 垫片27*19*24 | 27 | 19 | 24 |
| 106051050382 | 垫片15*7*2 | 15 | 7 | 2 |
| 106051050392 | 垫片11*6*1 | 11 | 6 | 1 |
| 106051050402 | 垫片9.5*5*4 | 9.5 | 5 | 4 |
| 106051050412 | 垫片16.15*11.30*3.25 | 16.15 | 11.3 | 3.25 |
| 106051050422 | 垫片28*10*2 | 28 | 10 | 2 |
| 106051050432 | 垫片25*13*2 | 25 | 13 | 2 |
| 106051050442 | 垫片22*13*2 | 22 | 13 | 2 |
| 106051050452 | 垫片20*13*2 | 20 | 13 | 2 |
| 106051050462 | 垫片24*14*1.5 | 24 | 14 | 1.5 |
| 106051050472 | 垫片23.8*12.7*1.6 | 23.8 | 12.7 | 1.6 |
| 106051050482 | 垫片27*19*2.4 | 27 | 19 | 2.4 |
| 106051050492 | 垫片25.4*15.8*2.4 | 25.4 | 15.8 | 2.4 |
| 106051050502 | 垫片15*10*0.5 | 15 | 10 | 0.5 |
| 106051050512 | 垫片22*12*1.5 | 22 | 12 | 1.5 |
| 106051050522 | 垫片15*5*1 | 15 | 5 | 1 |
| 106051050532 | 垫片10*5*1 | 10 | 5 | 1 |
| 106051050542 | 垫片18*6*1.5 | 18 | 6 | 1.5 |
| 106051050552 | 垫片6*3*0.8 | 6 | 3 | 0.8 |
| 106050650561 | 垫片16*8*2 | 16 | 8 | 2 |
| 106050450561 | 垫片16*8*2 | 16 | 8 | 2 |
| 106050450572 | 垫片10*3*2.5 | 10 | 3 | 2.5 |
| 106050650581 | 垫片18*6*2 | 18 | 6 | 2 |
| 106050480581 | 垫片18*6*2 | 18 | 6 | 2 |
| 106050450581 | 垫片18*6*2 | 18 | 6 | 2 |
| 106050450591 | 垫片11.5*6.1*3.9 | 11.5 | 6.1 | 3.9 |
| 106050450601 | 垫片11.5*6.1*5.0 | 11.5 | 6.1 | 5 |
| 106050450611 | 垫片11.5*6.1*5.9 | 11.5 | 6.1 | 5.9 |
| 106050450621 | 垫片14*6.4*T1.2 | 14 | 6.4 | 1.2 |
| 106050450631 | 垫片10*4.3*T0.8 | 10 | 4.3 | 0.8 |
| 106050450641 | 内十字垫片11.5*4.5*T0.8 | 11.5 | 4.5 | 0.8 |
| 106050650651 | 垫片9*4*0.5 | 9 | 4 | 0.5 |
| 106050650661 | 垫片9*4*1.0 | 9 | 4 | 1 |
| 106051250661 | 垫片9*4*1.0 | 9 | 4 | 1 |
| 106050550671 | 垫片9*4*1.5 | 9 | 4 | 1.5 |
| 106050450682 | 垫片8*4*1 | 8 | 4 | 1 |
| 106050480682 | 垫片8*4*1 | 8 | 4 | 1 |
| 106050480691 | 垫片20*6.5*T2 | 20 | 6.5 | 2 |
| 106050450701 | 垫片3.08*2.2*T0.85 | 3.08 | 2.2 | 0.85 |
| 106050550701 | 垫片3.08*2.2*T0.85 | 3.08 | 2.2 | 0.85 |
| 106050450712 | 垫片12*6.5*T1 | 12 | 6.5 | 1 |
| 106050450722 | 垫片20*10*T3 | 20 | 10 | 3 |
| 106050480722 | 垫片20*10*T3 | 20 | 10 | 3 |
| 106050450732 | 垫片6*3*T0.8 | 6 | 3 | 0.8 |
| 106050450742 | 垫片8.7*4.3*T1.0 | 8.7 | 4.3 | 1 |
| 106050550752 | 垫片14*7*T0.5 | 14 | 7 | 0.5 |
| 106050050762 | PCB介片27*17*T0.8 | 27 | 17 | 0.8 |
| 106050450772 | 垫片8.0*3.0*T0.5 | 8 | 3 | 0.5 |
| 106050650782 | 垫片10*5.3*1.5 | 10 | 5.3 | 1.5 |
| 106052050792 | 垫片6x2x1 | 6 | 2 | 1 |
| 106050450802 | 垫片10x4.7x1.5 | 10 | 4.7 | 1.5 |
| 106053650812 | 垫片6.35*3.05*T1.57 | 6.35 | 3.05 | 1.57 |
| 106050450822 | 垫片6*3*0.5 | 6 | 3 | 0.5 |
| 106050450831 | 垫片17.7*14.3*T1.2 | 17.7 | 14.3 | 1.2 |
| 106050450841 | 垫片20*13*T3 | 20 | 13 | 3 |
| 106050450852 | 垫片6.2*T0.35 | 6.2 | 0.35 | |
| 106052050852 | 垫片6.2*T0.35 | 6.2 | 0.35 | |
| 106052150862 | 垫片5*2.7*T1.05 | 5 | 2.7 | 1.05 |
| 106052150872 | 垫片5*2.7*T0.6 | 5 | 2.7 | 0.6 |
| 106050280881 | 轴承垫片15.98X2.4 | 15.98 | 2.4 | |
| 106050280931 | 轴承垫片15.98X2.3 | 15.98 | 2.3 | |
| 106050450892 | 垫片12*6.5*T1.2 | 12 | 6.5 | 1.2 |
| 106050450901 | 垫片6*3*1 | 6 | 3 | 1 |
| 106050450912 | 垫片20*10.5*T2 | 20 | 10.5 | 2 |
| 106050450922 | 垫片12*6.5*T1.5 | 12 | 6.5 | 1.5 |
| 106051050932 | 垫片12.7*8.4*T0.8 | 12.7 | 8.4 | 0.8 |
| 106050450942 | 垫片10*5*1 | 10 | 5 | 1 |
3.产品用途(Application)
塑料垫片目前广泛应用于零件垫片及其它垫片之固定保护；特点是重量轻、体积小、绝缘、美观、环保、不生锈、安装方便、快捷等优点。颜色有黑色，白色，自然色，还可按照客户所需颜色调色，规格齐全。
Plastic gasketare currently widely used inparts offixedprotectiongasket andother gaskets;characteristic is theadvantages oflight weight,small volume,beautiful appearance,insulation,environmental protection,no rust,easy installationand convenient.The color black,white,natural color,can alsoaccording to customerneedcolor,complete specifications.
4.产品性能(Function)
塑料华司垫片,尼龙、乙烯等材料加工成型,具有绝缘耐蚀、隔热、非磁性能,用于紧固件、绝缘隔离垫片。通常是各种形状的薄件，用于减少摩擦、防止泄漏、隔离、防止松脱或分散压力。 许多材料和结构中都有这种部件，用于履行各类相似的功效。
Plastic washer gasket, nylon, vinyl and other materials processing and forming, corrosion resistance, heat insulation, insulation is non magnetic properties for fasteners, insulation gasket. Usually thin pieces of various shapes, used to reduce friction, prevent leakage, isolation, prevent loosening or dispersive pressure. Such components are a lot of material and structure, for the performance of various similar effect.
